Maxi Rotary Vane Pumps

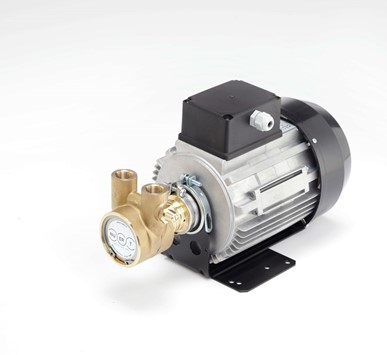

Maxi rotary vane pump Used mainly at industrial level, these pumps boast flow rates and head pressures typical of bigger and more expensive models.
The size of inlet and outlet threaded ports is 1/2".

Materials used for the body

brass, stainless steel.

The pump can be equipped with:

  • a normal by-pass valve
  • a balanced by-pass valve
  • no by-pass valve

Available gaskets and mechanical seals:

  • NBR (standard equipment)
  • EPDM
  • VITON

Engine connection:

  • through an elastic metal clamp
  • through flange screws

Currently available flow rates:
500-600-700-800-900-1080 l/h at 1450rpm

All models are fully compliant to European RoHS Directive, while Reach regulation does not apply to our products.
Certified NSF or WRAS models available upon request.

Fields of Application:

Overall dimensions of maxi pumps

Maxi pumps dimensions draw

Characteristic curves

Maxi pumps characteristic curves

Flow rate of maxi pumps
